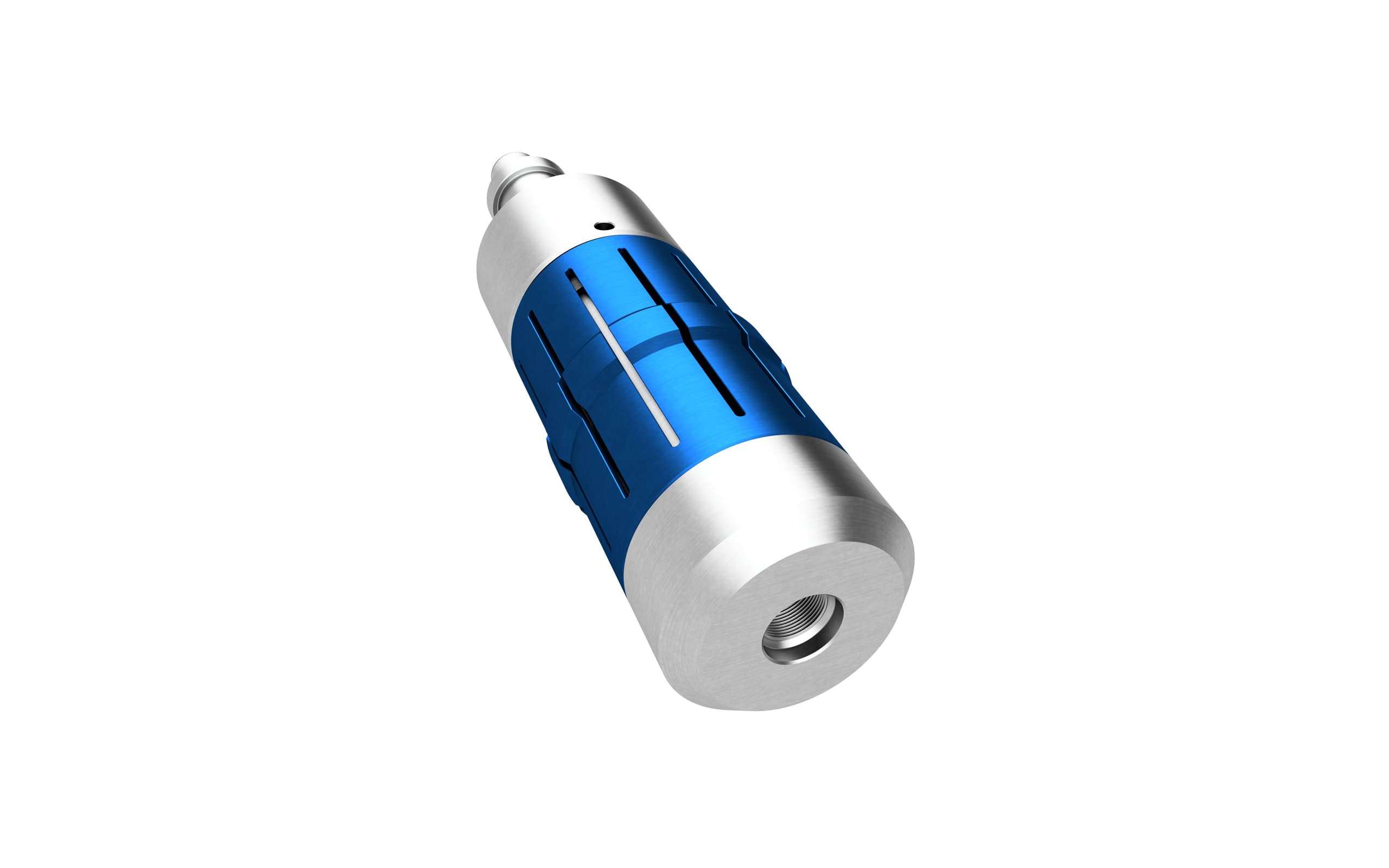

Nipple Profile Locator rendering

Nipple Profile Locator

Used to identify the location of Nipple profiles and/or the end of the production tubing for depth correlation

Product summary

The Nipple Profile Locator is a device used to identify the location of Nipple profiles and/or the end of the production tubing for depth correlation.

The design allows the device to be run in combination with mechanical jars into the production string with multiple nipple profiles of the same size. When the first nipple profile is found the operator picks up his toolstring marking the woreline depth of the nipple.

Once recorded the operator jars down and pushes the Nipple Locator tool through the nipple profile and continues to the next. On completion of the nipple profile correlation run, the operator pulls out the hole slowing at the previous recorded depth. Applying an overpull will allow the collet to retract and Nipple Profile Locator tool is recovered to surface. A variety of latches can be supplied to suit profiles or tubing Inner diameter.

Features

  • Available in sizes to suit most Nipple Profile profiles

  • Used at the end of production tubing for depth correlation

  • Can be run in a string with multiple nipples of the same size

Benefits

  • Multiple sizes can be selected for one chassis

  • Field redressable
