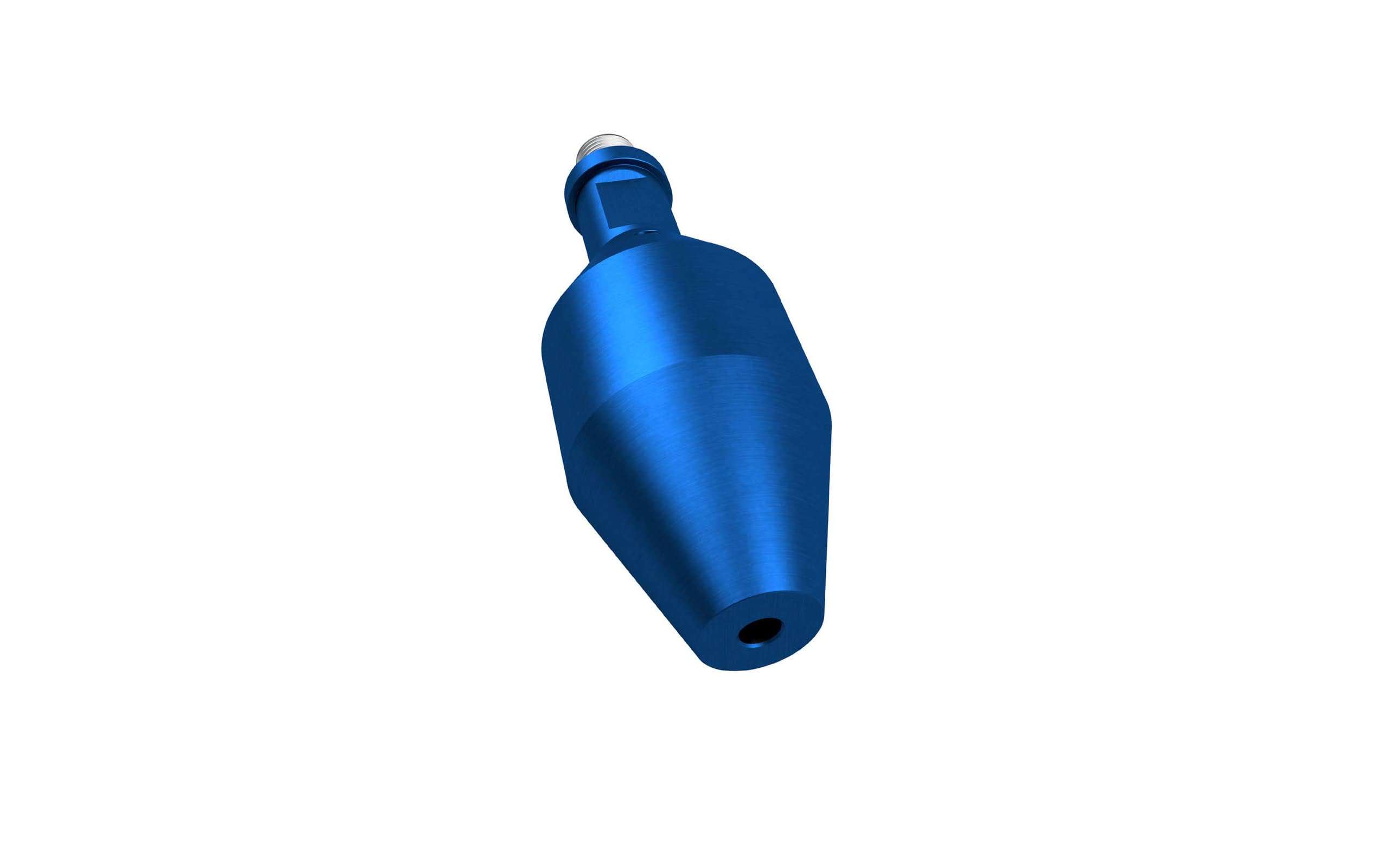

Tubing Swage rendering

Tubing Swages

Clearing slight tubing collapse and other obstructions in the completion tubing string, allowing other services to be performed

Product summary

Hunting Tubing Swages are designed to clear slight tubing collapse and other obstructions in the completion tubing string, allowing other services to be performed.

A tubing swage consists of a solid bar with an up-set in the middle and tapered at both ends. A center bore with lateral ports provides fluid by-pass.

Swages are available in a range of sizes to fit the need and have a customer specified top connection with fishing neck. The diameter of the tubing swage should be matched to the tubing it is being deployed in.

Features

  • Fluid Bypass ports

  • Robust for heavy jarring

  • Multiple sizes for most applications

Benefits

  • Obstruction clearing allowing subsequent operations
