Product summary
Built for onshore semi-premium applications.
HYPER-LOCK HELIX2 is the powerhouse that delivers exceptional torque and faster running speeds—boosting performance, driving efficiency, and cutting operational costs where it counts

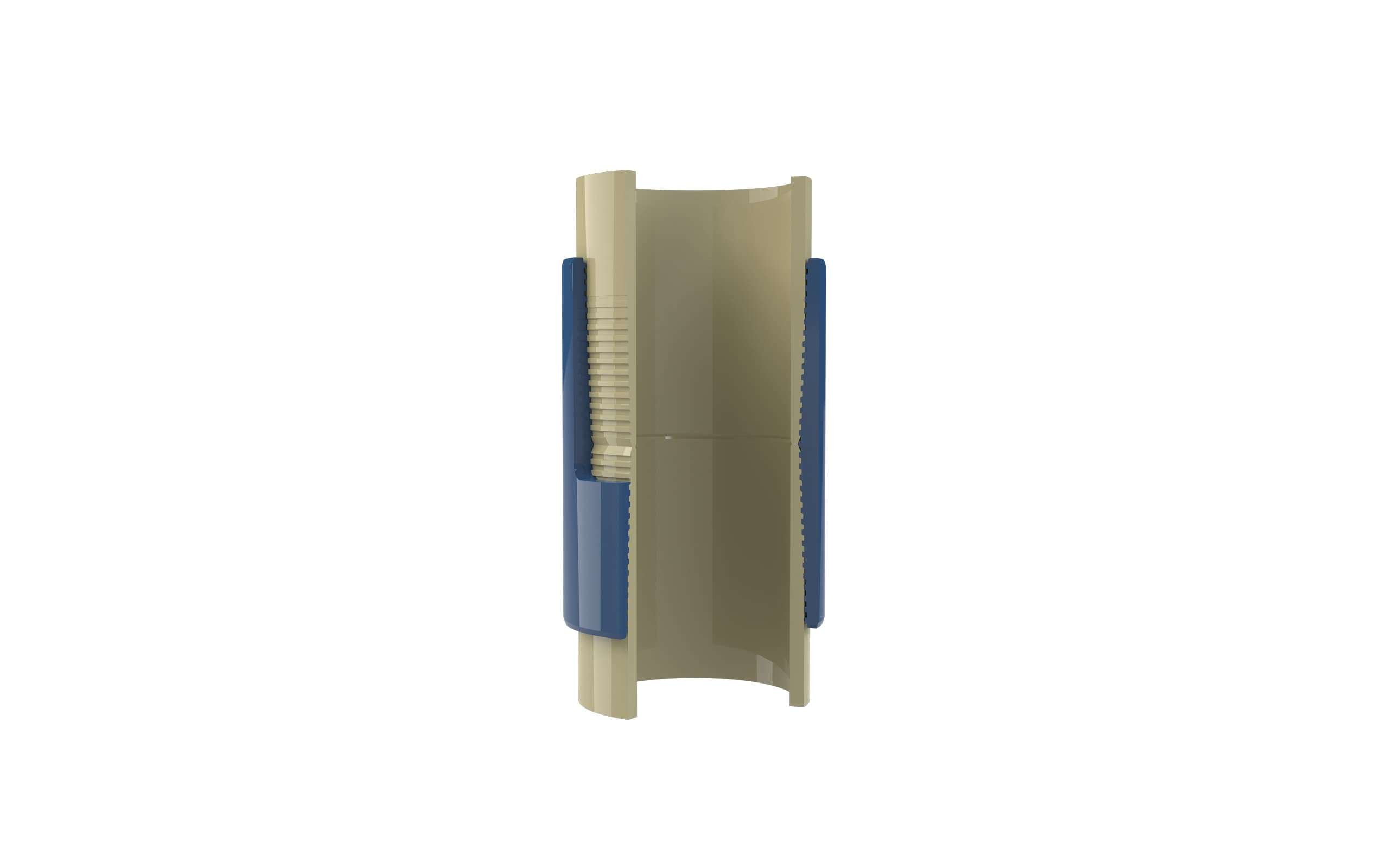

The pin-to-pin contact is excellent for rotating casing downhole and enhancing connection integrity. Ideal for extended reach horizontal applications requiring high bending, compressive and torsional resistance.
Features
Available in sizes from 4.500 in. to 7.625 in.
Shallow thread form with negative load flanks provide sound structural integrity and trouble-free running.
Pin-to-Pin torque shoulder area greater than semi-premium BTC connections resulting in higher torque performance.
Dual thread start provides faster casing installations.
Flush bore eliminates turbulence and tool hang ups.
Benefits
Run-Out Thread achieves 100% axial efficiencies.
Thread design allows deep stab and quick make up (4 to 5 turns), reduced risk of cross thread.
Extensive worldwide support through Hunting mill relationships and threading locations.
Couplings are machined from standard API coupling stock.
